Baptist World Center Town Homes

Commercial Retaining Wall Case Study in Nashville, Tennessee

  Living Hardscapes completed a standalone commercial retaining wall package for Baptist World Center Town Homes in Nashville, Tennessee. This wall helped create additional usable space for townhouse development while supporting code-compliant drive and parking requirements on a constrained site.

PROJECT SNAPSHOT

PROJECT SNAPSHOT

PROJECT SNAPSHOT

Location: Nashville, TN
Project Type: Commercial Retaining Wall
Client Type: Developer / Owner
Wall System: Redi-Rock Gravity Wall with XL Base Block
Wall Size: 1,300 square feet
Wall Length: 190 linear feet
Wall Height: 7.5 feet
Number of Walls: 1
Material Quantity: 203 tons
Completion Date: July 2023

PROJECT OVERVIEW

PROJECT SNAPSHOT

PROJECT SNAPSHOT

This project required a retaining wall solution that would help maximize usable site space for townhouse construction. The development needed additional room to fit the townhomes on the lot while maintaining code-compliant drive lanes and parking.

Living Hardscapes supplied and installed a Redi-Rock gravity wall system using XL Base Block to meet the structural and layout needs of the site while delivering a clean finished appearance.

The Challenge

One of the biggest challenges on this project was access. Most of the wall product had to be delivered, unloaded, and installed within approximately 10 feet of a high-traffic street. That left very little staging room and required careful coordination between deliveries, equipment movement, and installation.

Because the wall was also important to the overall site layout, installation had to stay efficient and controlled so the development could continue moving forward.

SCOPE OF WORK

SCOPE OF WORK

SCOPE OF WORK

Living Hardscapes provided the retaining wall scope for this project, including:

  • Procurement of stamped engineer plans
  • Supply of Redi-Rock wall block product
  • Installation of filter fabric
  • Installation of base pad
  • Installation of sleeves for water utility
  • Core filling of block
  • Installation of drainage stone
  • Installation of drain pipe behind the wall

Excavation and a portion of the retained backfill were completed by another contractor.

OUR APPROACH

SCOPE OF WORK

SCOPE OF WORK

To complete the work in a narrow operating area, our team coordinated material deliveries closely with installation production. This reduced double handling and allowed the wall units to be unloaded and set efficiently.

We also used equipment with a tight operating radius to work effectively in the limited space between the wall line and the street. Minor traffic control measures were used when needed to maintain safe operations and keep installation moving.

The Result

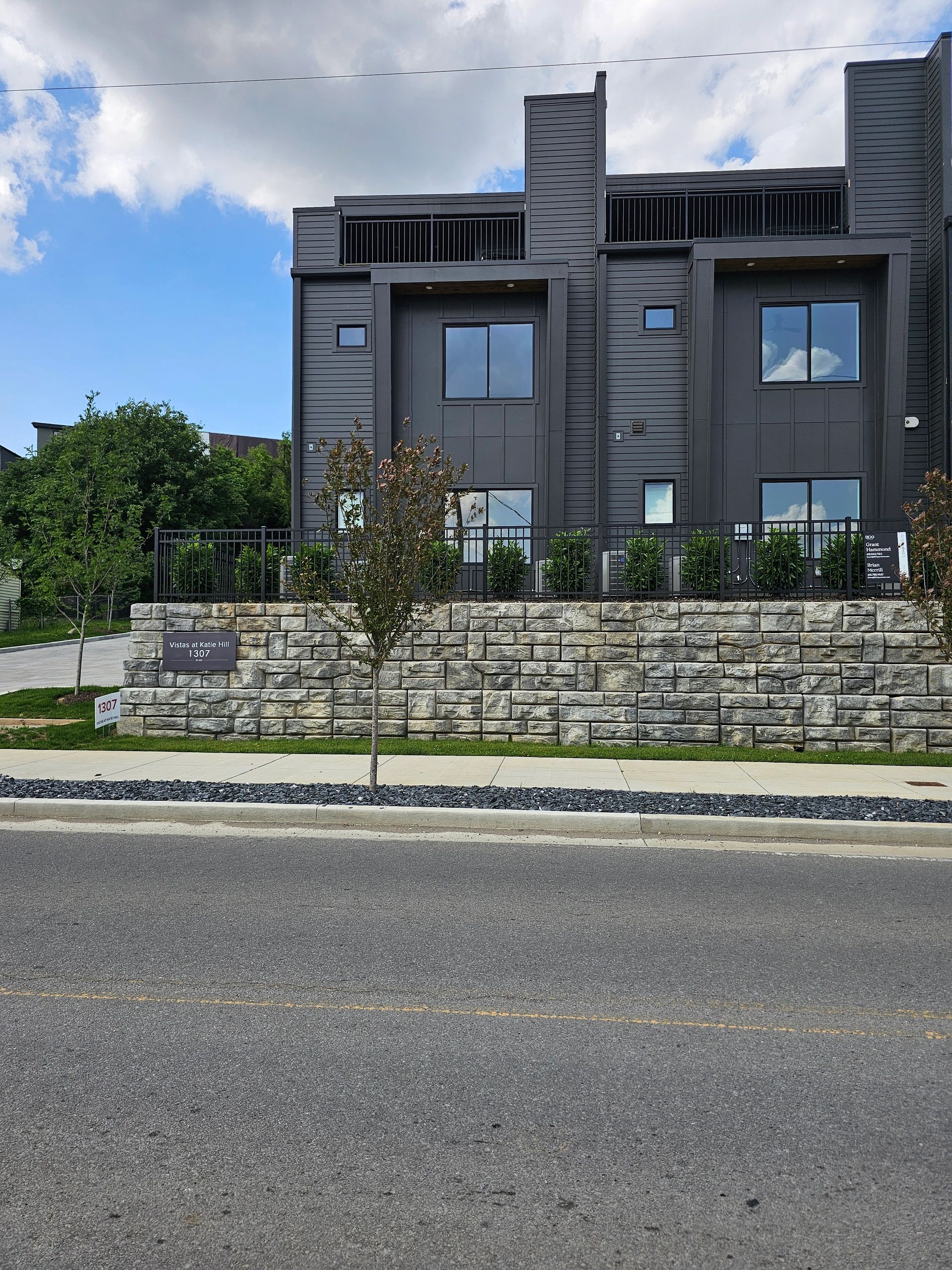

The completed retaining wall helped create the additional usable space needed to support the townhouse layout, drive access, and parking requirements. It also provided a durable and visually appealing wall system that supported the site’s overall development goals.

Although Redi-Rock is a wet-cast block product, the finished wall achieved a clean natural stone appearance that added visual value to the project.

Why This Project Matters

This project reflects the kind of retaining wall work Living Hardscapes is built for: engineered wall packages, constrained-access installation, and practical solutions that help developers make better use of challenging sites.

When retaining walls directly affect layout, parking, access, and buildable space, proper planning and execution matter. Our team helps deliver wall systems that support site development and long-term performance.

Need a Retaining Wall Contractor for Your Next Project?

 Living Hardscapes provides commercial retaining wall installation for developers, general contractors, and owners who need reliable wall systems that support site development, usable space, and long-term performance.

Talk With Our Team
